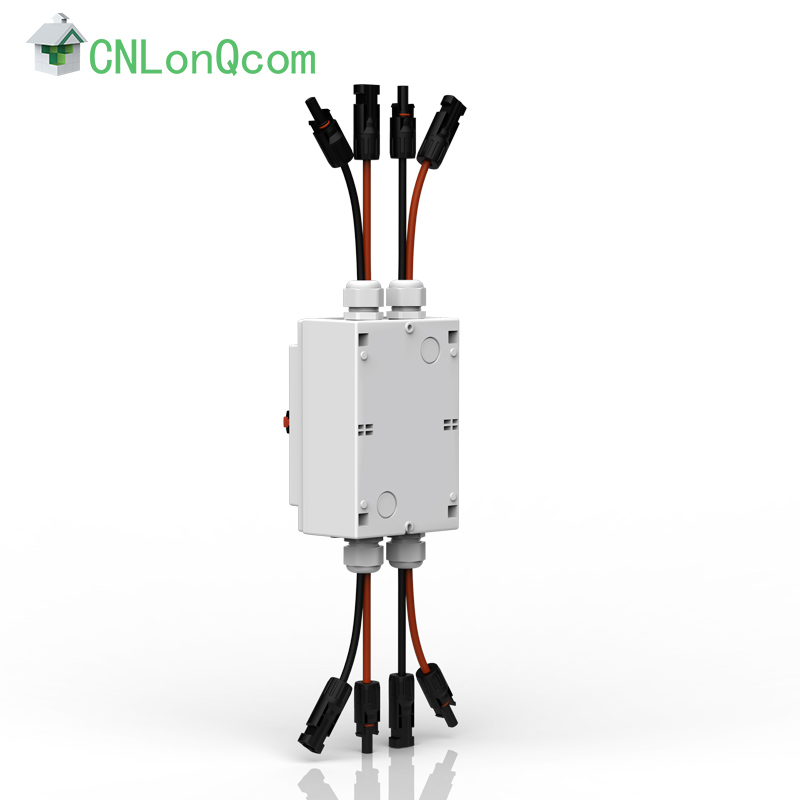

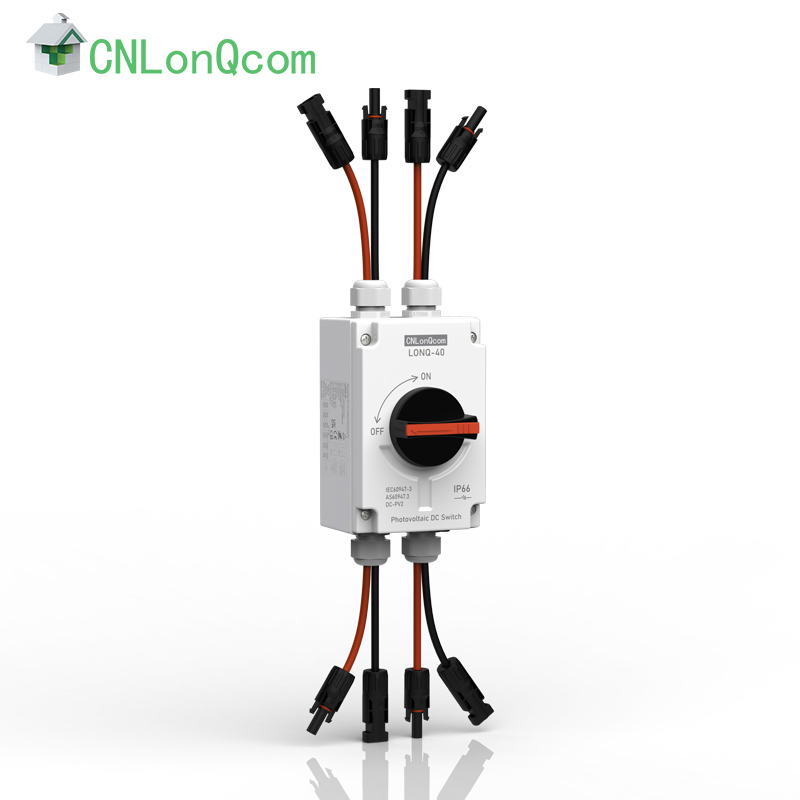

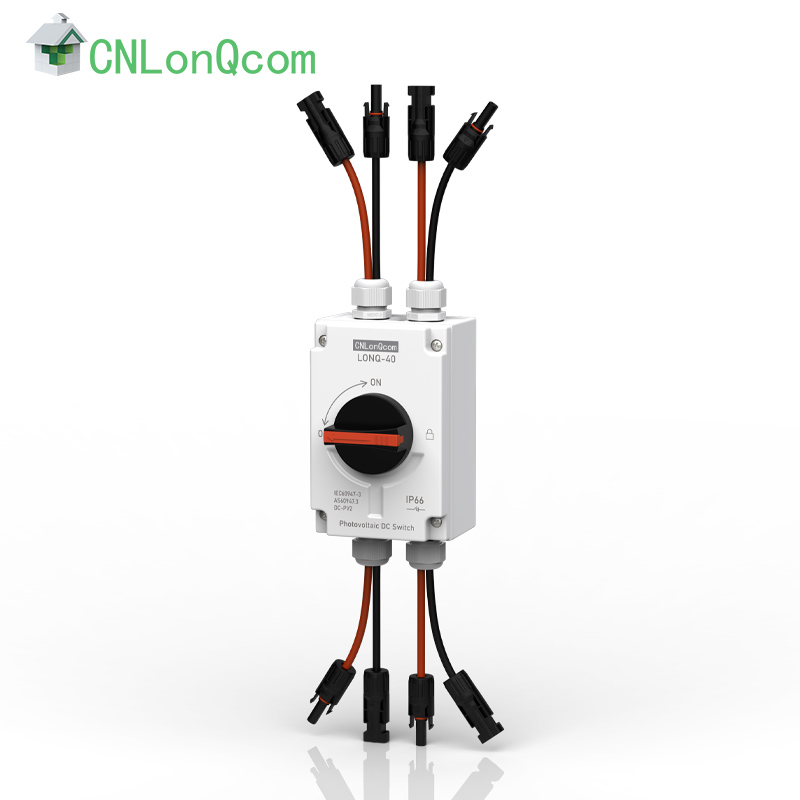

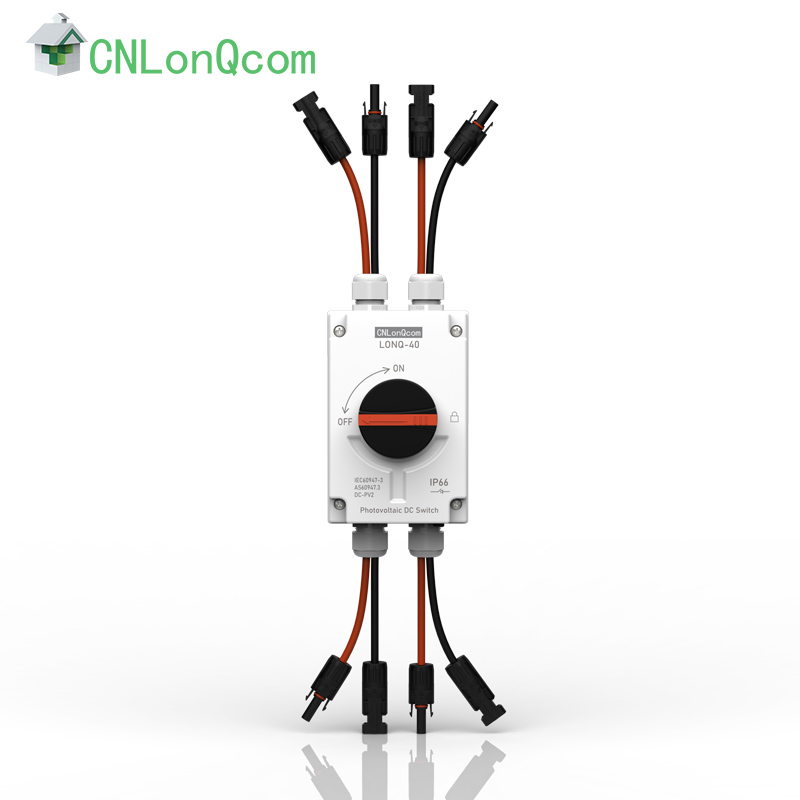

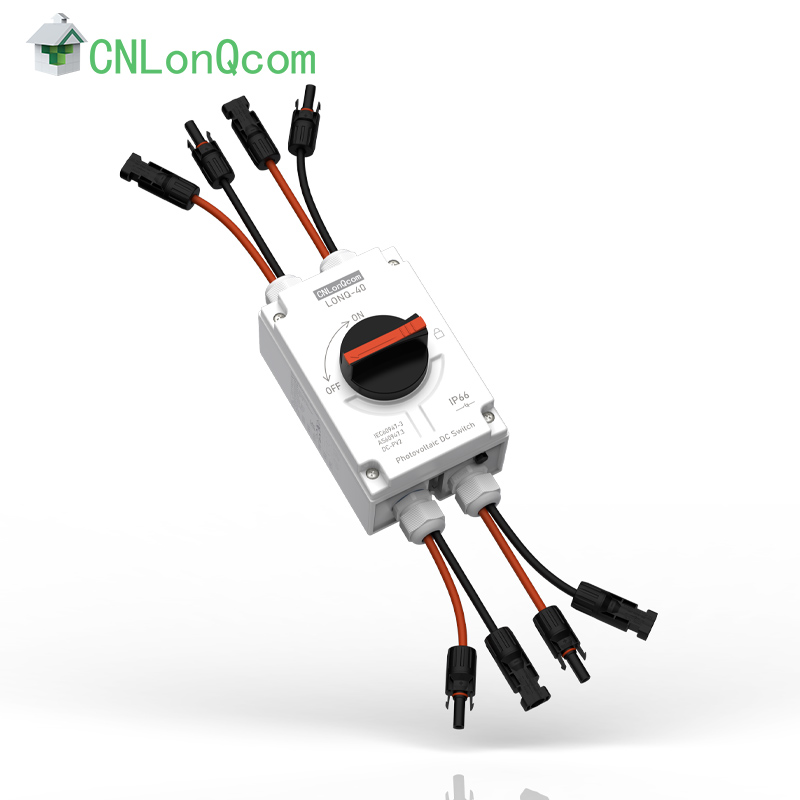

CNLonQcom minangka produsen profesional lan supplier PV Switch-disconnector 1500V 32A 2-2 digunakake ing sistem distribusi tenaga fotovoltaik.
Parameter utama | unit | LONQ-40 | |
Rated voltase insulasi | Ui | V | 1500 |
Rated saiki termal | Ith | A | 32 |
Impuls sing dirating tahan voltase | Ump | V | 8000 |
Kapasitas nggawe sirkuit cendhak sing dirating | lcw | A | 1000 |
Potongan kabel maksimum (kalebu jumper) |
|
|
|
Solid utawa standar | mm2 | 2.5-6 | |
Fleksibel | mm2 | 2.5-6 | |
Fleksibel (+ ujung kabel multicore) | mm2 | 2.5-6 | |
Torsi |
|
|
|
Sekrup terminal torsi kenceng M4. | Nm | 1.2-1.8 | |
Ngencengi sekrup pemasangan cangkang torsi | Nm | 1.5-2.0 | |
Ngencangake sekrup torsi | Nm | 0.5-0.7 | |
Ngaktifake utawa mateni Torsi | Nm | 0.9-1.3 | |
Torsi kabel ing Base | Nm | 1.1-1.4 | |
Paramèter umum |
|
|
|
Posisi tombol |
|
OFF jam 9 , ON jam 12 jam | |
urip mekanik |
|
10000 | |
Jumlah kutub DC |
|
2 utawa 4 | |
Suhu operasi |
|
-40 kanggo +85 | |
Suhu panyimpenan |
|
-40 kanggo +85 | |
Gelar polusi | ℃ | 2 | |
Kategori overvoltage | ℃ | III | |
Rating IP saka shafte lan soyo tambah nul |
|
IP66 |
WIRING DIAGRAM
Volume Cilik
Bahan Flame Retardant
lp66
Flying Fox Short
jangkep Aksesoris
-40 ℃ ~ + 85 ℃ kisaran suhu sekitar
Desain non-polar
Pengujian tundhuk karo AS 60947.3:2018,EN IEC 60947-3:2021,Kategori Panggunaan: DC-PV2 | Pole | No. saka Strings | Nomer Bagian | ||||
600V | 800V | 1000V | 1200V | 1500V | |||
PV2 | PV2 | PV2 | PV2 | PV2 |
|
|
|
32A | 32A | 25A | 13A | 6A | 2 | 1 | LONQ-40-2 |
32A | 32A | 25A | 13A | 6A | 4 | 1 | LONQ-40-4 |
32A | 32A | 32A | 32A | 23A | 4 | 1 | LONQ-40-4S |
32A | 32A | 32A | 32A | 23A | 4 | 1 | LONQ-40-4B |
32A | 32A | 32A | 32A | 23A | 4 | 1 | LQNQ-40-4T |
Jinis |
PEDSC100R/120R | Grafik Wiring Kontak | Tuladha ngalih |
2-Kutub | 2 |
![]() |
![]() |
4-Kutub | 4 |
![]() |
![]() |
4-Pole karo Input lan Output ing ndhuwur | 4T |
![]() |
![]() |
4-Pole karo lnput lan Output ngisor | 4B |
![]() |
![]() |
4-Pole karo lnput ing ndhuwur Output ngisor | 4S |
![]() |
![]() |
